Product Details

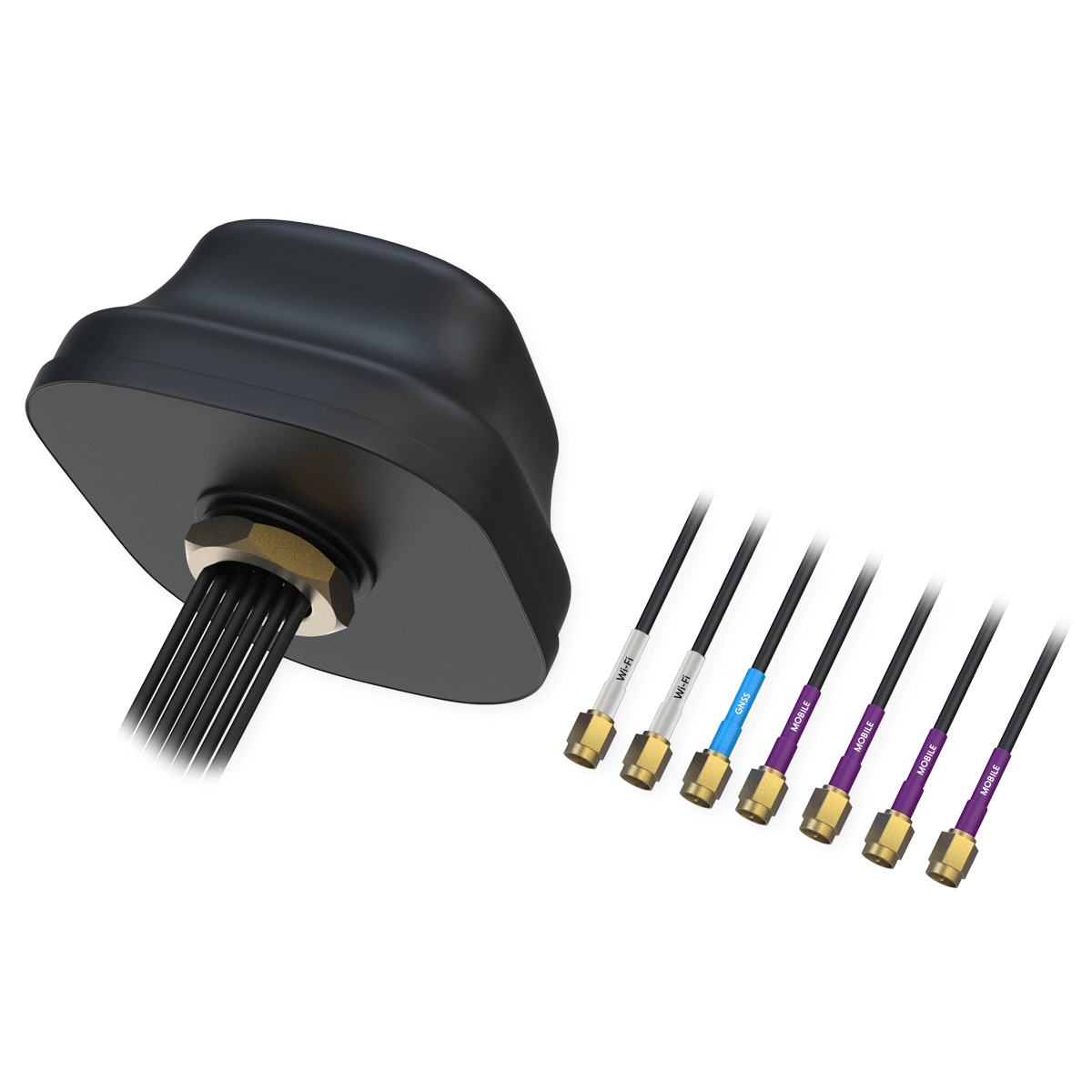

The 5G Combo MIMO SMA Antenna (PR1KC640) by Teltonika supports cellular, WiFi, and GNSS in one. With MIMO (multiple input, multiple output), it optimizes signal strength and data speeds. IP67-rated and UV-resistant housing ensures durability for outdoor use. The screw mounting method makes it easy to install on a roof. It's ideal for mobile and fixed applications, such as vehicles and buildings.
5G Combo MIMO Antenna is equipped with seven 3-meter SMA cables (4 cellular, 2 WiFi, and 1 GPS). It's compatible with:
- Teltonika RUTC50 Cellular Router
- Teltonika RUTM50 Cellular Router
- Teltonika RUTM51 Cellular Router
- Teltonika RUTM54 Cellular Router
- Teltonika RUTX50 Cellular Router
- Teltonika TRB500 Cellular Gateway
What's In The box?
- 5G Combo MIMO SMA Antenna
Technical Specifications
| Teltonika 5G Combo MIMO SMA Antenna | |
|---|---|
| GENERAL INFORMATION | |
| Model | PR1KC640 |
| Antenna Type | Combo MIMO |
| Mounting | Roof, screw mount |
| Cables | 7x 3-meter cables (4 cellular, 2 WiFi, 1 GPS) |
| IP Rating | IP67 |
| Compatible With | RUTC50, RUTM50, RUTM51, RUTM54, RUTX50, TRB500 |
| CELLULAR ANTENNAS | |
| Frequency Range |
617 ~ 960 MHz 1710 ~ 2700 MHz 3300 ~ 5000 MHz |
| Connector Type | 4x SMA male |
| Polarization | Vertical |
| MIMO Configuration | 4x4 |
| WIFI ANTENNAS | |
| Frequency Range |
2400 ~ 2500 MHz 5150 ~ 5850 MHz |
| Connector Type | 2x RP-SMA male |
| MIMO Configuration | 2x2 |
| GNSS ANTENNA | |
| Frequency | 1575.42 MHz (GPS L1) |
| Connector Type | 1x SMA male |
| ENVIRONMENTAL | |
| Operating Temperature | -40°C to +85°C |
| Weather Resistance | UV-resistant housing |
| RoHS Compliant | Yes |
