About This Product

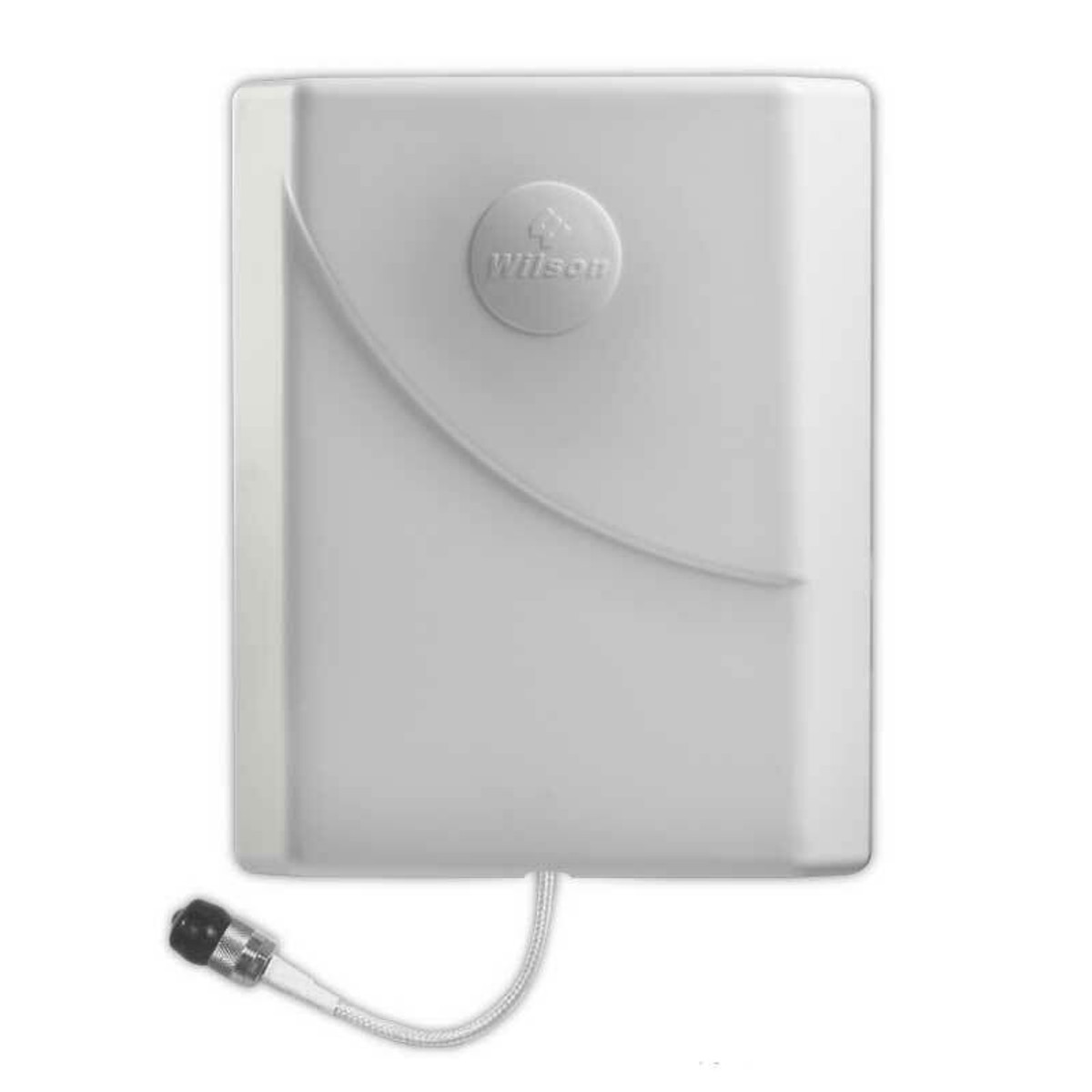

The weBoost Inside Panel Antenna is a 50 Ohm indoor, wall-mount antenna used to broadcast boosted 3G & 4G LTE signals from a Wilson weBoost signal booster. Most powerful wide-band coverage features up to +10.6 dB gain. Best for priority area coverage and corridors.
- Indoor directional 3G & 4G antenna.
- For 50 Ohm Signal Boosters
- Up to +10.6 dB gain.
FREE Same Day Shipping
90 Day Money Back Guarantee
2 (Two) Year Warranty
100% Secured Checkout
Tech Specs
| weBoost (Wilson) 311135 Panel Antenna w/ Wall Mount, wide-band 50 Ohm | |
|---|---|
| Frequency & Gain | 700-800 MHz - 5.2 dB 824-894 MHz - 4.4 dB 880-960 MHz - 4.2 dB 1710-1880 MHz - 10.1 dB 1850-1990 MHz - 10.6 dB 2110-2170 MHz - 8.2 dB |
| Radiation | Directional |
| Impedance | 50 Ohms |
| Maximum Power | 50W |
| Beamwidth Horizontal Plan | 70 / 60 Deg |
| Beamwidth Vertical Plane | 50 / 45 |
| Connectors | N-Female |
| Dimensions | 8.27 x 7.09 x 1.73 inch / 21 x 18 x 4.39 cm |
| Weight | 1.32 lb / 0.6 kg (Antenna Only) |
| UPC | 811815023555 |
