About This Product

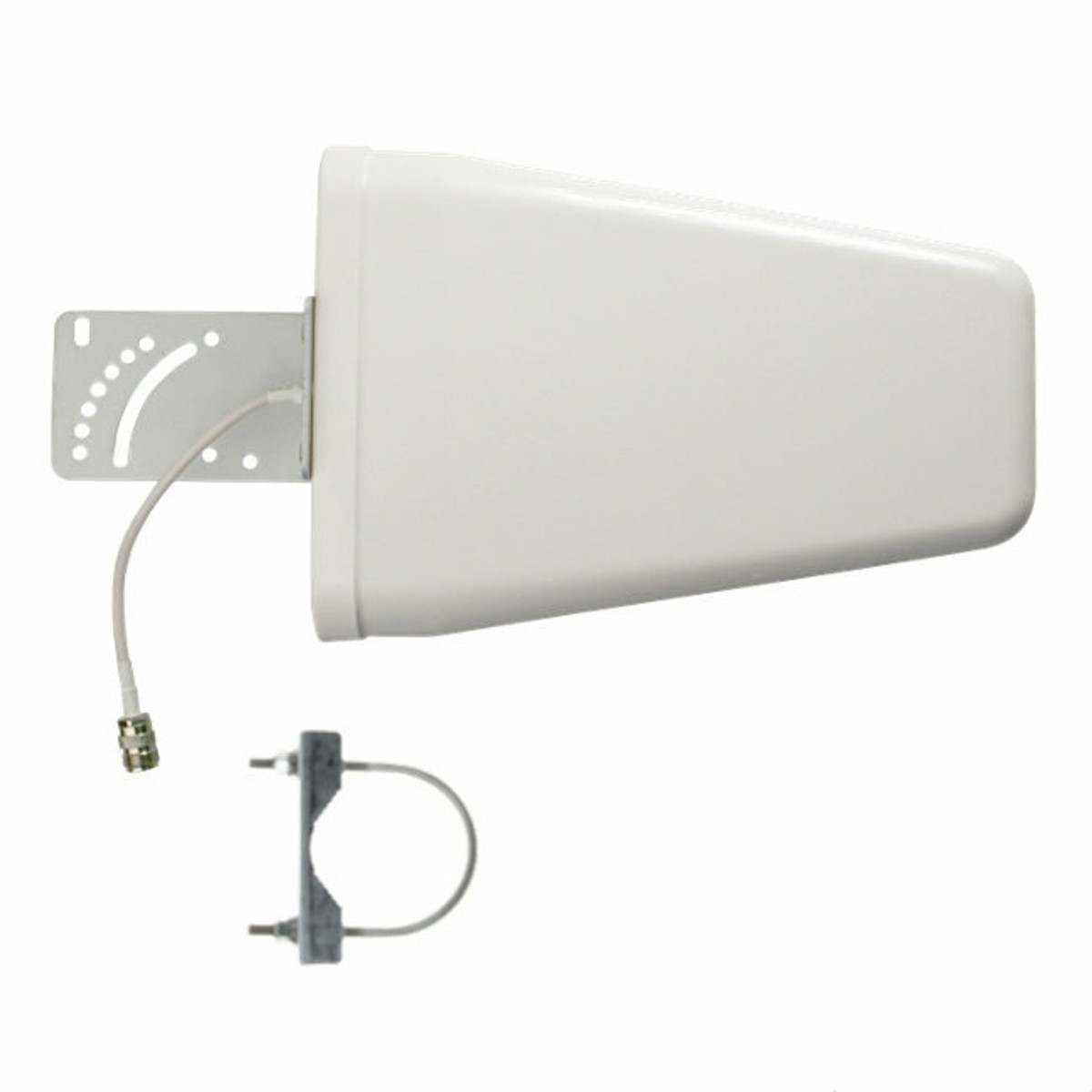

The Wilson Yagi Antenna is an outdoor building antenna. With up to +10.6 dB gain, it pulls in signal for homes, offices, and small buildings.
- Pulls in 3G & 4G LTE signal indoors
- For 75 ohm signal boosters
- Up to 10.6 dB gain
FREE Same Day Shipping
90 Day Money Back Guarantee
2 (Two) Year Warranty
100% Secured Checkout
Tech Specs
| weBoost (Wilson) 314475 Directional Antenna | Wide-Band | |
|---|---|
| Frequency & Gain | 700-800 MHz - 7.3 dB 824-894 MHz - 8.1 dB 880-960 MHz - 7.4 dB 1710-1880 MHz - 9.2 dB 1850-1990 MHz - 10.6 dB 2110-2170 MHz - 10.4 dB |
| Impedance | 75 Ohms |
| Polarization | Vertical |
| Maximum Input Power | 100W |
| Connector | F-Female |
| Mount | Mounts on pipe 0.5-1.5 inches in diameter |
| Brackets | Max OD 2 Inches |
| Height | 11.42 inch / 29 cm |
| Weight | 3.31 lb / 1.5 kg (With Mount) |
| UPC | 813986009291 |
Need help finding the right accessory or part?
Talk to our experts: 1-800-638-6336 (Mo-Fri 8AM-6PM CST)
