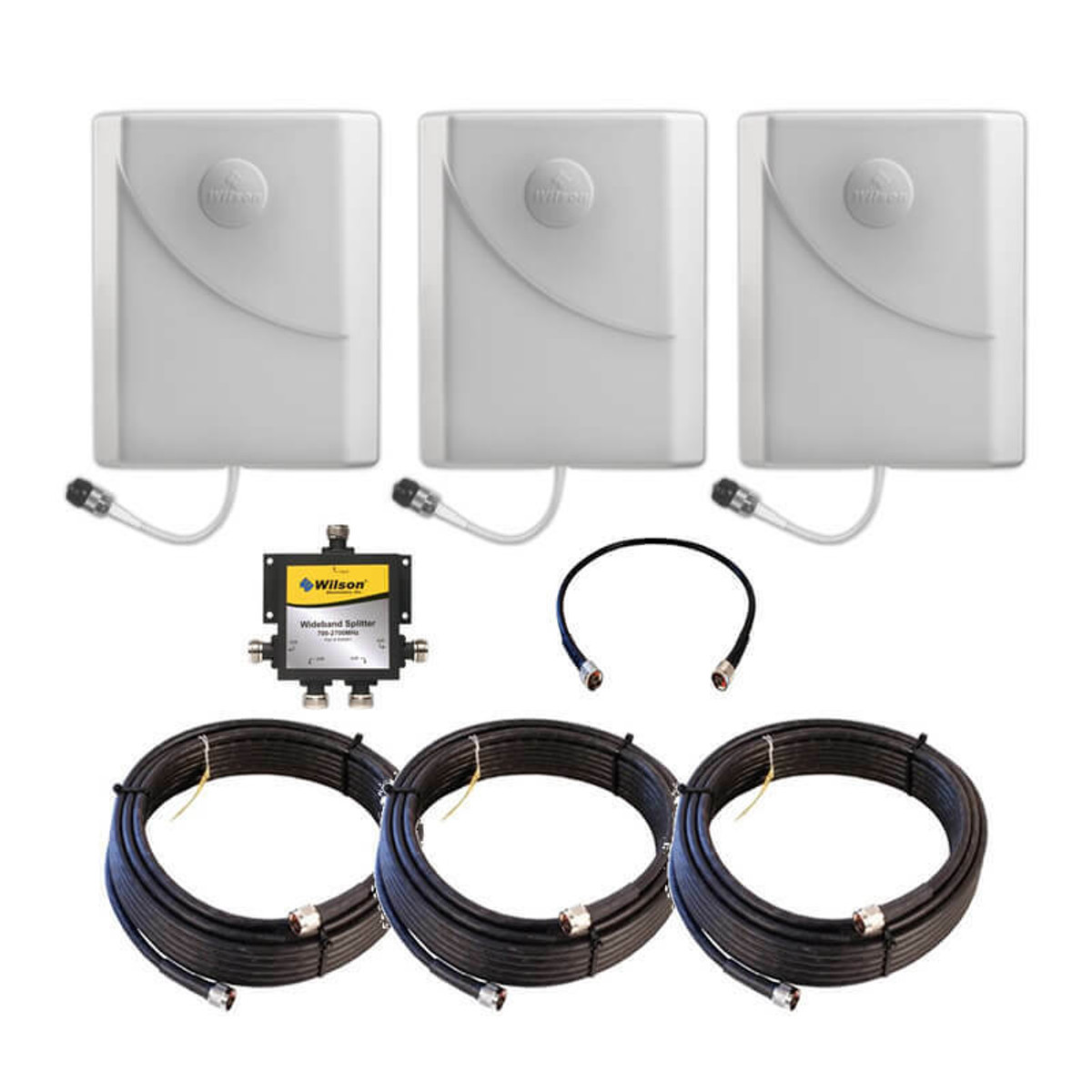

Wilson Triple Antenna Kit - 50 Ohm
Wilson 50 Ohm Triple Antenna Expansion Kit 309908-50N includes three Panel Antennas and all necessary cables and a four-way splitter for three additional indoor antenna installation.
- Broadcast 3G & 4G LTE signal indoors
- For all 50 Ohm in-building signal boosters
- Up to 10.6 dB gain
FREE Same Day Shipping
90 Day Money Back Guarantee
2 (Two) Year Warranty
100% Secured Checkout
Tech Specs
| Wilson Triple Antenna Expansion Kit 50 Ohm - 309908-50N | |
|---|---|
| Frequency & Gain | 700-800 MHz - 5.2 dB 824-894 MHz - 4.4 dB 880-960 MHz - 4.2 dB 1710-1880 MHz - 10.1 dB 1850-1990 MHz - 10.6 dB 2110-2170 MHz - 8.2 dB |
| Radiation | Directional |
| Impedance | 50 Ohms |
| Maximum Input Power | 50W |
| Beamwidth Horizontal Plane | 70 / 60 Deg |
| Beamwidth Vertical Plane | 50 / 45 Deg |
| Connectors | N-Female |
| Dimensions | 8.27 x 7.09 x 1.73 inch / 21 x 18 x 4.39 cm |
| Weight | 1.32 lb / 0.6 kg |
| UPC | 811815026075 |
Need help finding the right accessory or part?
Talk to our experts: 1-800-638-6336 (Mo-Fri 8AM-6PM CST)
Recommended Add-ons
Wilson Dual Antenna Expansion Kit 50 Ohm - 309907-50N
- Indoor, wall-mount directional antenna
- Works with 50 Ohm amplifiers and accessories
- Fixed installations
- two antennas provide extra signal coverage
- Up to +10.6 dB Gain

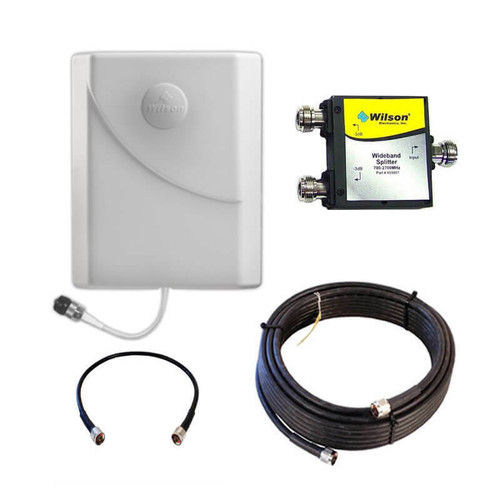

Wilson Single Antenna Expansion Kit 50 Ohm - 309906-50N
