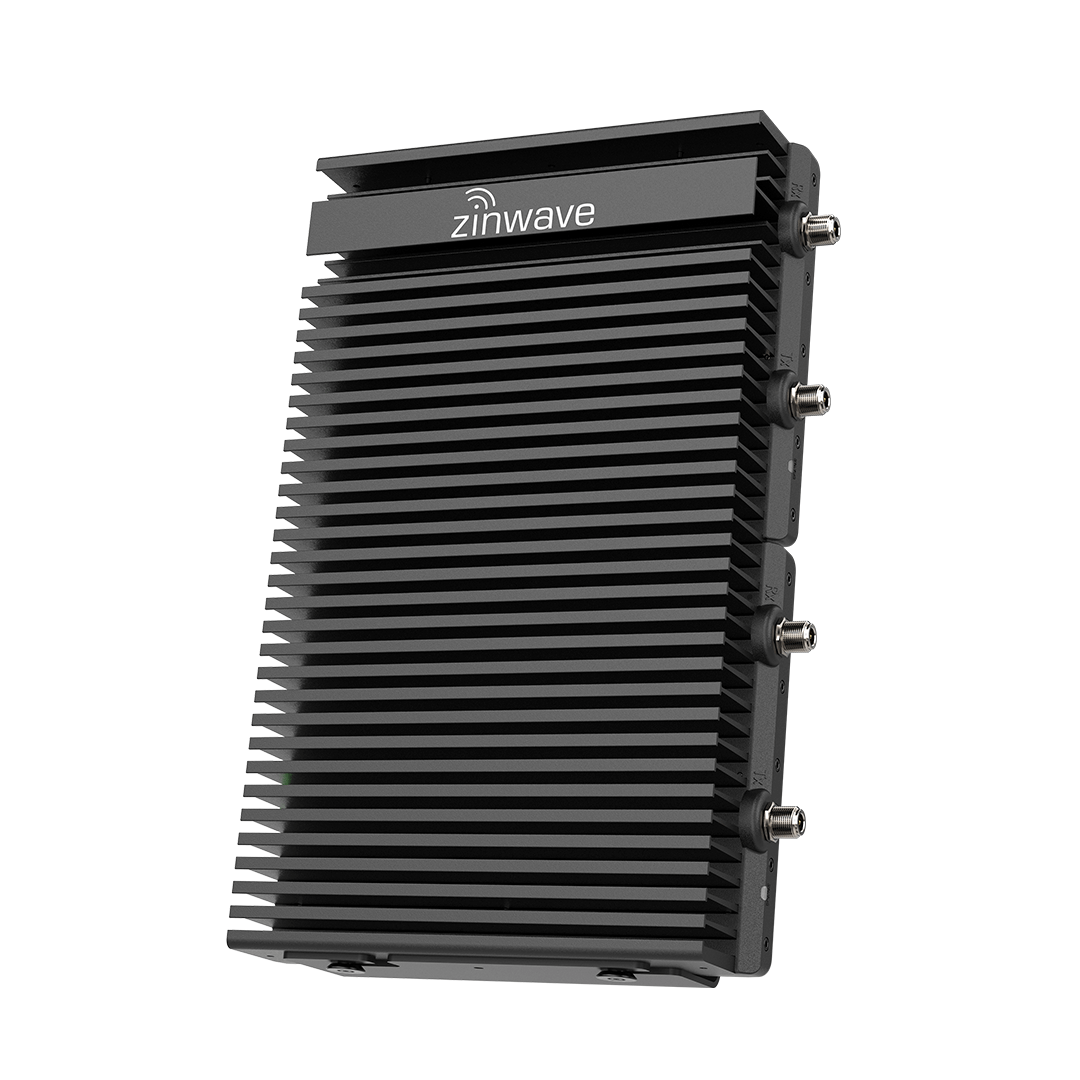

The Zinwave Uniwave 8000 2 Path Remote Unit converts downlink signals from optical to RF and amplifies them for mobile devices. With max downlink power of 25 dBm, a single 2 Path RU delivers exceptional coverage.
This is a SISO, Single Input Single Output, RU. It supports one uplink antenna and one downlink antenna.
Via fiber optic cable, 1 Path RU links to either the Primary or Secondary Hub. It can be placed above ceiling tiles or in inconspicuous locations.
The 2 Path RU also converts uplink signals from RF to optical and amplifies them, delivering them even stronger to the signal source. It handles frequencies 150 MHz to 5 GHz.
This is a 2x2 MIMO, Multiple-Input Multiple-Output, RU. It supports two uplink antennas and two downlink antennas. Multiple antenna support helps minimize the number of RUs needed to achieve desired coverage.
Via fiber optic cable, 2 Path RU links to either the Primary or Secondary Hub. It can be placed above ceiling tiles or in inconspicuous locations.
| Unit Specifications | |
| SKU | 308-0007-2 |
| POWER CONNECTIVITY | 48 V DC POWER INPUT VIA PHOENIX 5.08mm 2-WAY CONNECTOR; AWG 12-24 |
| FIBER CONNECTIVITY | LC/APC DUPLEX |
| ANTENNA CONNECTIVITY | SIMPLEX N-FEMALE CONNECTORS (TX AND RX) |
| OTHER CONNECTIVITY | ALARM RELAY: PHOENIX 5.08 mm 3-WAY |
| DIMENSIONS W / D / H (mm) | 2X2 - 17.7" (450) x 10.8" (275) x 3" (75) |
| WEIGHT | 2X2 - 17.6 LBS (8 KG) |
| ELECTRICAL DEPENDING ON CONFIGURATION | 48 V DC / 1A / 50W (170 BTU/HR) Each Path |
| OPERATING TEMP AMBIENT NON-CONDENSING | -5 C to +45 C |
| Approvals & Listings | |
| EUROPE | CE MARKED FOR RADIO EQUIPMENT DIRECTIVE 2014/53/EU AND ROHS DIRECTIVES 2011/65/EC |
| USA FCC | FCC CERTIFIED |
| CANADA | INDUSTRY CANADA CERTIFIED |
| SAFETY | IEC 60950-1; EN 60950-1; UL62368-1; UL2043 |
| LASER SAFETY | IEC 60825-1:2007 |
| ENVIRONMENT | IP20 Rated |
| UPC | 810005964449 |
| PRODUCT DOWNLOADS | Technical Specifications |
