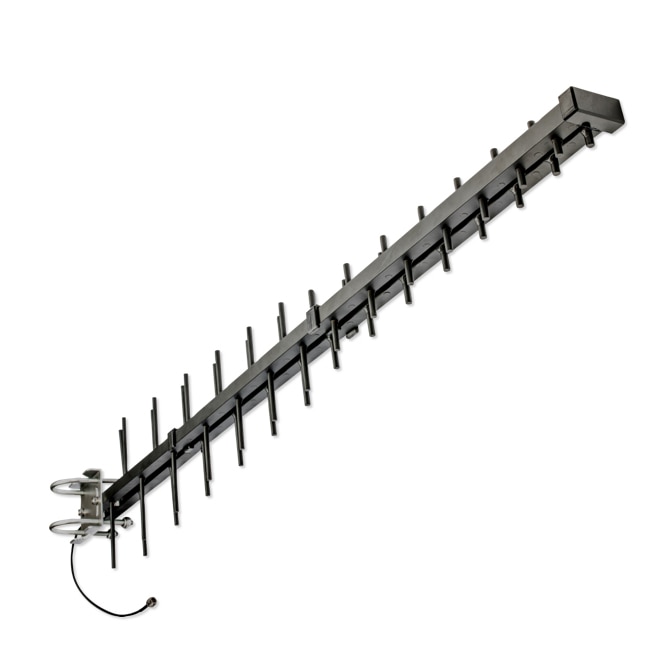

The Arrow LPDA – High Gain Directional Antenna – Bolton Technical

SKU: BT974921
Free Standard Shipping FREE Standard Shipping*
The Arrow LPDA – High Gain Directional Antenna – Bolton Technical
  • Superior gain up to +12 dB
  • Over 5 miles of range
  • N-Female connector ports, 50 Ohm
  • Works across the 698-2700 MHz cellular bands
  • Weatherproof, all-weather tested
You save $38.99
Need help finding the right product? Speak to a Signal Expert
Shipping Guarantee
FREE shipping with Expedited available.
Money Back Guarantee
Test it for 30 days, or your money back.
Warranty Guarantee
2 year manufacturer's warranty
Bolton Technical Reseller
The Arrow LPDA – High Gain Directional Antenna – Bolton Technical

A Straight Shot to Cellular

With over 5 miles of range and compatibility with all North American carriers (including Rogers, Bell, Telus, and more), the Arrow LPDA antenna brings great cellular signal directly from the tower to your home or business.

Peerless Marksmanship

Up to +12 dB of gain, it is nearly three times as powerful as a typical yagi antenna, and several dB higher than other log periodic (LPDA) antennas on the market. Provides continuous gain across all cellular frequencies.

Hit Your Cellular Target

Designed for rural areas but usable in any signal environment, the Arrow log periodic antenna is compatible with any N-Male 50 Ohm coaxial cable for the lowest signal loss possible.

At Home on any Roof

Simple to point and very powerful, the Arrow LPDA antenna strikes the perfect balance between ease of use and power. Like most TV antennas, it can withstand nearly any weather conditions, including snow, sleet, and rain.

Bolton Technical Arrow Details

Incredible Gain - Improve your cellular signal by up to +12dB, more than any yagi antenna

Works With Cell Phone Signal Boosters, Cellular Modems, Routers, and Hotspots - Plug in to your cell phone signal booster, mobile hotspot, cellular modem, or range extender and see the difference. Connectors sold separately.

Stands Up to All Kinds of Weather

Classic log periodic design, time-tested

Some assembly required. Requires the use of a 10mm wrench, socket, or nut driver, or alternatively an adjustable wrench or pliers to set up. Mount sold separately.

If sudden drop in signal is experienced, reposition antenna. Be sure to secure antenna thoroughly to prevent drift.

Due to the power of the Arrow, the strength of the incoming signal can overwhelm some consumer signal boosters. If this happens, slightly redirect the beam away from the tower to prevent overload.

Outstanding Warranty - At Bolton, we believe in our stuff. That's why we back them all with a 24-month warranty and provide friendly, easy-to-reach help.

  • Long range – Over 5 miles
  • High gain and directionality on all frequencies between 698 MHz and 6500MHz
  • Weatherproof
  • All cellular: 5G / 4G / LTE / 3G, WiFi, Wi-Max, GPS, GOV, MIL, and SDR bands
  • Up to +12 dB Gain
  • Mount Sold Separately

Who is this for?

People in rural areas desperately searching for signal.

Businesses needing the absolute best outdoor antenna.

Technical Specifications
Bolton Technical Arrow Antenna
Frequency & Gain
698 - 960 MHz - +12 dB 1710-2700 MHz - +12 dB
Polarization Vertical
Horizontal Beam Width (°) 55±5
Vertical Beam Width (°) 55±5
VSWR ≤2.0
Front-to-back Ratio (dB) ≥20 AVG
Impedance (Ω) 50
Max Input Power (W) 50
Connector N-Female
Dimensions (mm/in) 1100 x 200 x 47 / 43.3 x 7.9 x 1.8
Antenna Weight (lb/kg) 2.0 / 1.0
Reflector Finish Aluminum
Radome Material Aluminum
Operating Temperature (°C/°F) -40 to +60 / -40 to +135
Kit Includes
The Arrow LPDA
